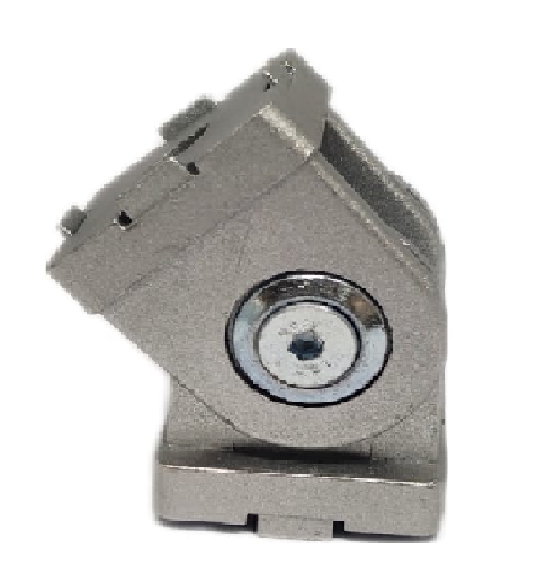

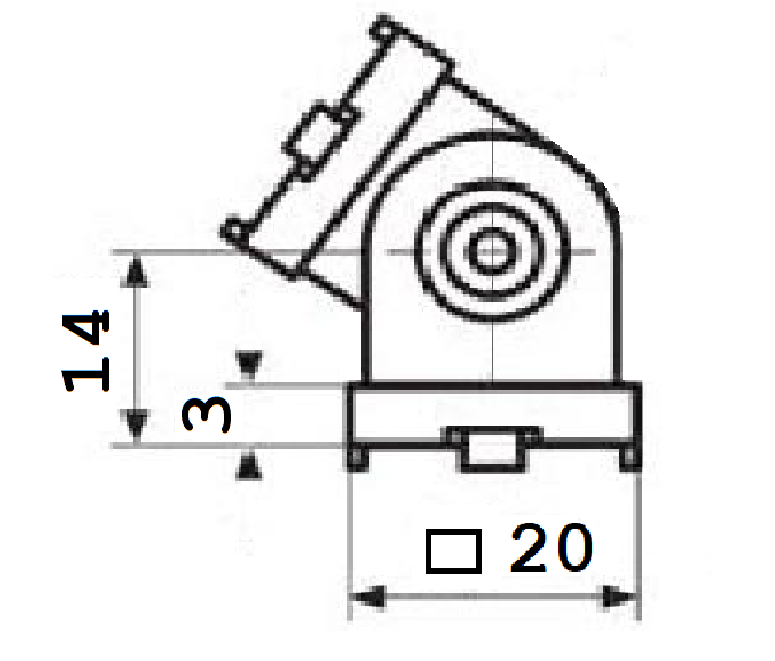

Pivot Joint 20

Slot – 6

Part Number – 999 126 010

Material

• Joint: Die – cast Zinc.
• Locking liver: Nylon PA.
• Glass filled Reinforced.

Quantity/Box                         2

Weight/Pc                              0.036kgs

Weight/Box                           0.072kgs

Application

• To Make a pivoting connection Between 2 Profiles or panels which can be fixed or panels which can be fixed at any Angle; Fixed Locating pins for slot 8 or 10 Optional.

Advantages

• By Tightening or loosening the screw and the locking lever seamlessly regulate the functionality of the joint or you can fix it in one position.
