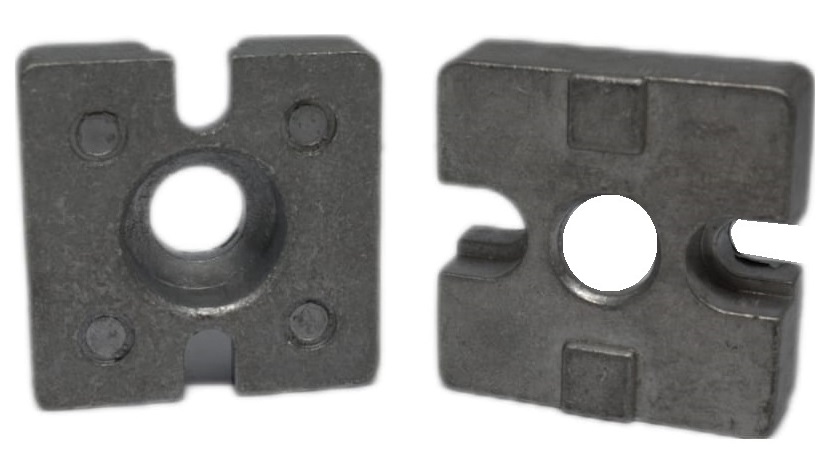

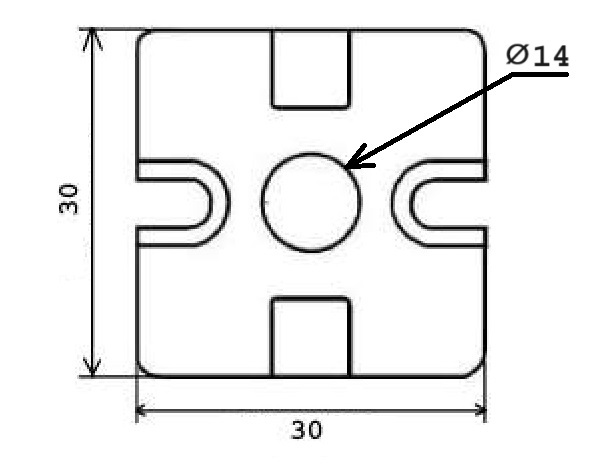

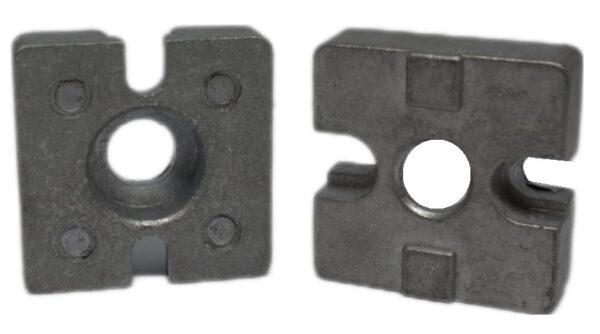

T – Connector 30×30

Part Number : 999 110 001

Material

Die Cast zinc for profiles 45×45

Quantity/ Box                              100

Weight / Pc                                   55g

Weight / Box                                 5.5 kgs

Height                                            13mm

Max Load                                       9000N

Bending Moment                            2000Nm

Accessories Not Incl ;

1 x central Bolt M12x30

2 x T-Nut Slot 10 M6

2 x Screws M6x16

Application

• To Connect profile 45×45
• Rectangularly to other profiles or plates.

Advantages

• High Strength Connection,appealing Design.
