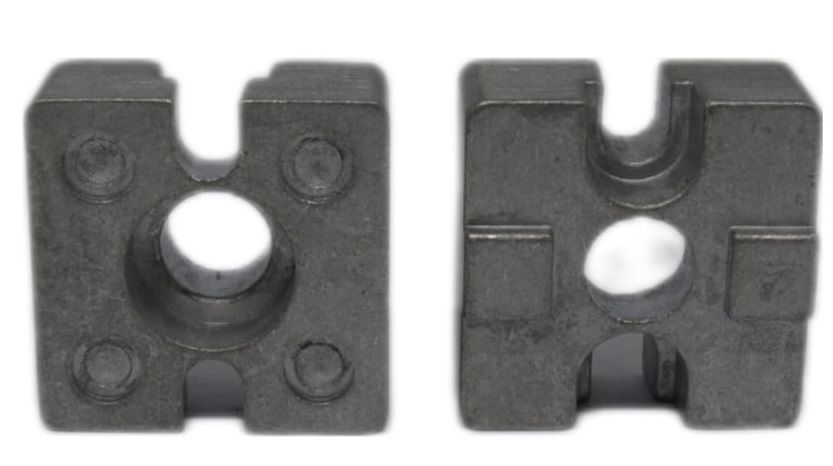

T – Connector 45×45

Part Number – 999 110 003

Material

• Die Cast zinc

Quantity/ Box                              10

Weight / Pc                                   55g

Weight / Box                                 5.5 kgs

Height                                            13mm

Max Load                                       9000N

Bending Moment                            2000Nm

Accessories Not Incl ;

1 x central Bolt M12x30

2 x T-Nut Slot 10 M6

2 x Screws M6x16

Application

• To Connect Profiles
• Rectangularly to other.
• Profiles or plates

Advantages

• High Strength connection, Appealing Design.
