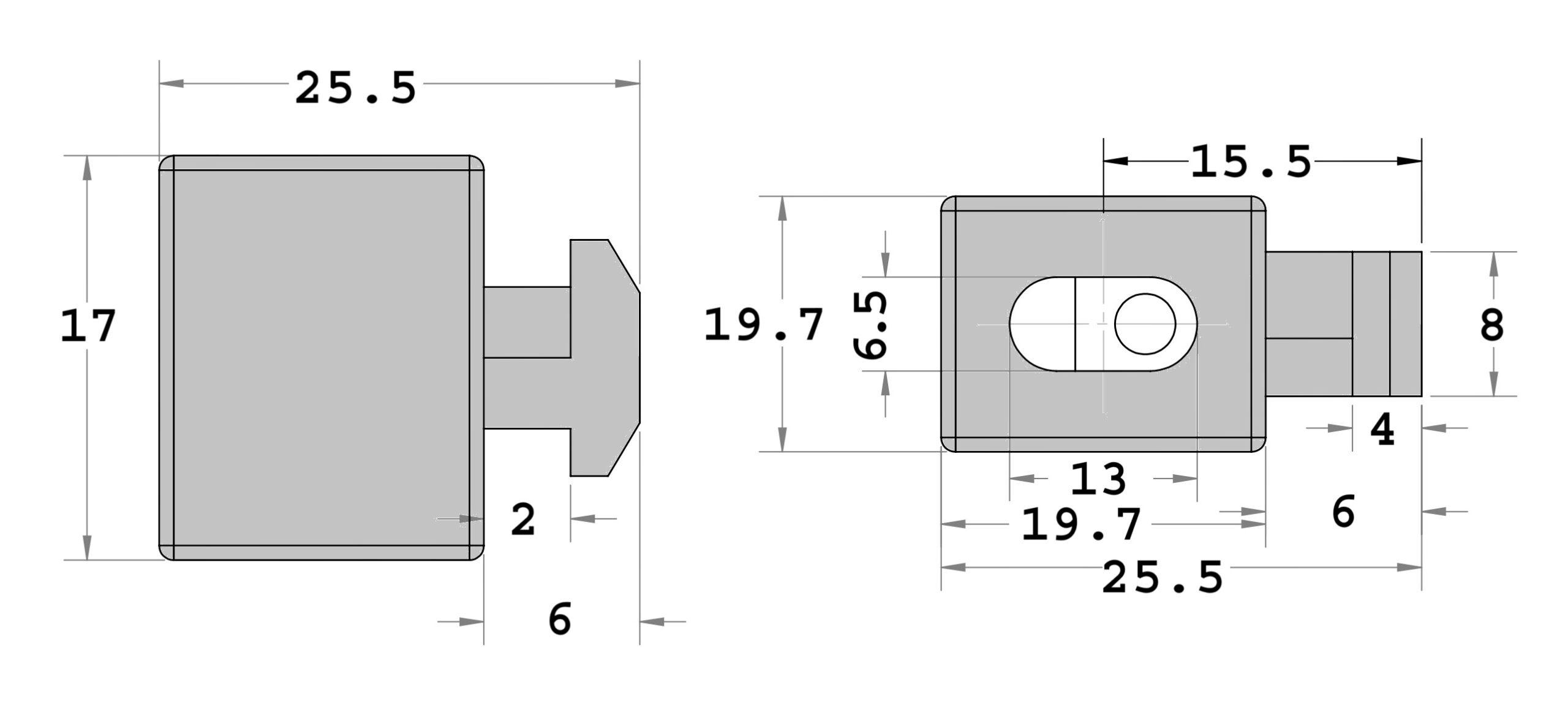

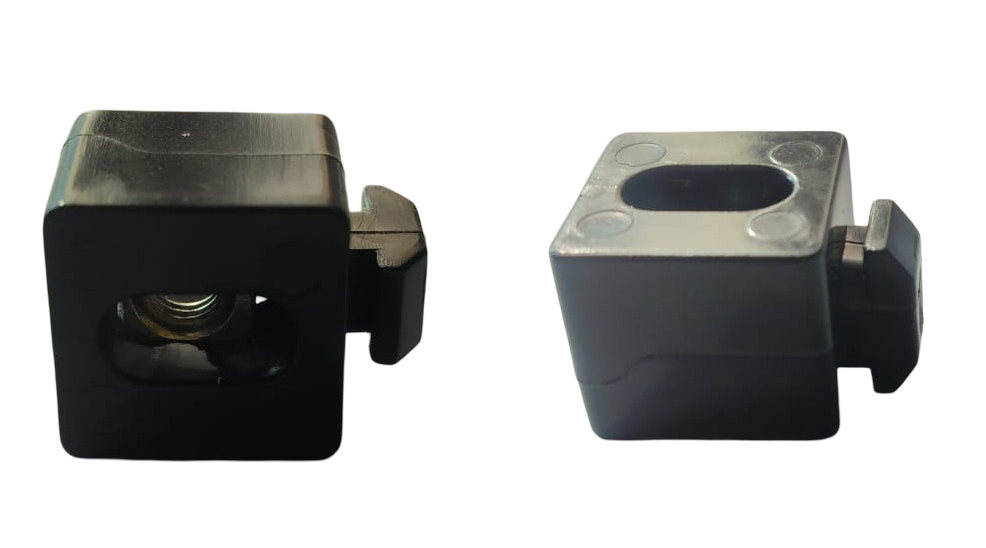

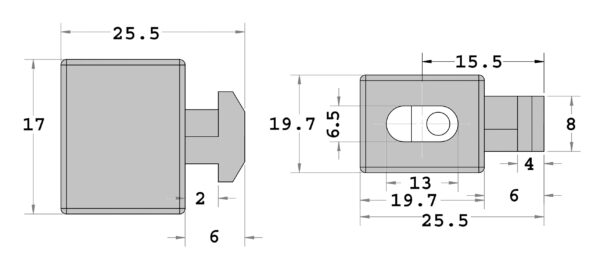

Uniblocks Slot 8 Type B

Part Number    :    999 146 001

Slot – 8

Material

• Block : Fibreglass.
• Reinforced,PA Black.
• Nut: M6 ; Steel,Zinc Coated.

Quantity / Box : 100

Weight / Pc : 0.009 Kgs

Weight / Box : 0.900 Kgs

Application

• To mount a panel into the profile, Position is Adjustable.
• Insert into the slot and turn 90°
• Nut Height is Adjustable.
