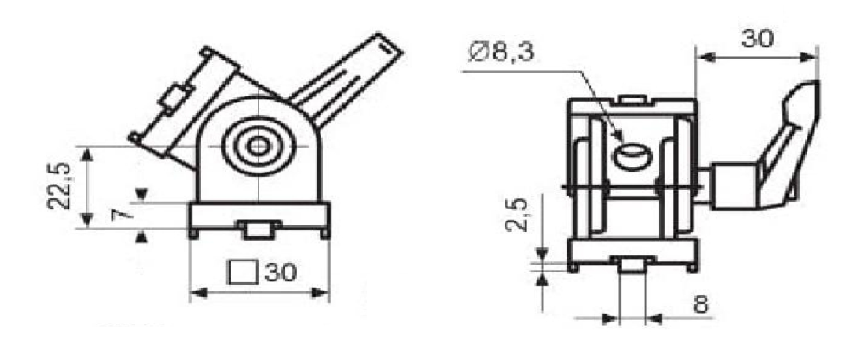

Pivot Joint 30-With Lever

Slot – 8

Part Number  –  999 126 001

Material

• Joint: Die – cast Zinc.
• Locking liver: Nylon PA.
• Glass filled Reinforced.

Quantity/Box                            2

Weight/Pc                                 160kgs

Weight/Box                              0.32kgs

Application

• To Make a pivoting connection Between 2 Profiles or panels which can be fixed or panels which can be fixed at any Angle; Fixed Locating pins for slot 8 or 10 Optional.

Advantages

• By Tightening or loosening the screw and the locking lever seamlessly regulate the functionality of the joint or you can fix it in one position.
